ANI and SNP distance matrices

Introduction

This tutorial will take n genome sequences and run algorithms to determine average nucleotide idenitities (ANI) and core genome single nucleotide polymorphisms (SNPs), visualising the distances as heatmaps in python.

This workflow uses fastANI for ANI, snippy and snp-dists for SNP distances, and seaborn and matplotlib in python to visualise the distances as heatmaps. For any analysis in bash it uses the conda package manager so make sure you have that installed.

Part 1 - Loading sequence data

Download files with wget

# 9A-1-1
wget "https://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/026/119/875/GCF_026119875.1_ASM2611987v1/GCF_026119875.1_ASM2611987v1_genomic.fna.gz"
# 9A-2-7
wget "https://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/026/119/895/GCF_026119895.1_ASM2611989v1/GCF_026119895.1_ASM2611989v1_genomic.fna.gz"
# 9A 3-9
wget "https://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/026/119/915/GCF_026119915.1_ASM2611991v1/GCF_026119915.1_ASM2611991v1_genomic.fna.gz"
# 9A-4-9
wget "https://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/026/119/955/GCF_026119955.1_ASM2611995v1/GCF_026119955.1_ASM2611995v1_genomic.fna.gz"

Unzip all files

gunzip *.fna.gz

Rename files to make data analysis easier

mkdir fastas
mv GCF_026119875.1_ASM2611987v1_genomic.fna fastas/9A-1-1.fasta
mv GCF_026119895.1_ASM2611989v1_genomic.fna fastas/9A-2-7.fasta
mv GCF_026119915.1_ASM2611991v1_genomic.fna fastas/9A-3-9.fasta
mv GCF_026119955.1_ASM2611995v1_genomic.fna fastas/9A-4-9.fasta

Part 2 - ANI matrix

2.1 - Calculating ANI with bash

We will be using fastANI with bioconda to determine ANI values for all of genomes compared against each other.

# conda create -n ANI_SNP_dists -y python=3.8
conda activate ANI_SNP_dists
conda install bioconda::fastani

Mkae a new folder called ANI

mkdir ANI

Create a list of fasta genomes to determine ANI

ls fastas/*.fasta > genomes.txt

cat genomes.txt

Check the list

cat genomes.txt

For ANI of all vs all run fastANI with all the genomes in your list.

Choosing the --matrix flag will output a matrix, this is what we will use to plot the heatmap

fastANI --ql genomes.txt --rl genomes.txt -o ANI/E_coli_ANI.tsv --matrix

Rename the output matrix

mv ANI/E_coli_ANI.tsv.matrix ANI/E_coli_ANI_matrix.tsv
sed 's|fastas/||g' ANI/E_coli_ANI_matrix.tsv > ANI/E_coli_ANI_matrix.tsv

2.2 - Visualising ANI matrix with python

2.2.1: Install libraries

# Install libraries as necessary

#pip install openpyxl
#pip install pandas
#pip install matplotlib
#pip install seaborn
#pip install numpy

#import importlib.metadata

Next load the libraries

import pandas as pd
import matplotlib.pyplot as plt
import matplotlib as mpl
import seaborn as sns
import numpy as np

2.2.2: Convert triangular matrix to full square matrix

Firstly we will convert the triangular matrix produced from fastANI to a full square matrix

# Load the file
with open("ANI/E_coli_ANI_matrix.tsv", "r") as f:
    lines = f.readlines()
    # Skip the first line (header)
    lines = lines[1:]
    # Strip whitespace
    lines = [line.strip() for line in lines if line.strip()]

# Extract strain names from the leftmost column
strain_names = []
values = []

for line in lines:
    parts = line.split("\t")
    strain_names.append(parts[0])
    values.append([float(x) for x in parts[1:]])

n = len(strain_names)
ani_matrix = np.zeros((n, n))

# Fill the lower triangle
for i in range(n):
    for j in range(len(values[i])):
        ani_matrix[i, j] = values[i][j]
        ani_matrix[j, i] = values[i][j]

# Fill the diagonal with 100s
np.fill_diagonal(ani_matrix, 100)

# Create DataFrame
ani_df = pd.DataFrame(ani_matrix, index=strain_names, columns=strain_names)

# Remove ".fasta" from column names
ani_df.columns = ani_df.columns.str.replace(".fasta", "")

# Remove ".fasta" from index names
ani_df.index = ani_df.index.str.replace(".fasta", "")

# Display to confirm
print(ani_df.head())

            9A-1-1      9A-2-7      9A-3-9      9A-4-9
9A-1-1  100.000000   99.989120   99.981598   99.991730
9A-2-7   99.989120  100.000000   99.983719   99.994034
9A-3-9   99.981598   99.983719  100.000000   99.989388
9A-4-9   99.991730   99.994034   99.989388  100.000000

2.2.3: Write a function to create the ANI heatmaps

Next we write a function which masks half the dataset to create a triangular heatmap, with the added functionality of rotating the heatmap

def plot_ani_heatmap(df, title="ANI Heatmap", rotation=0, lower_legend=95, upper_legend=100):
    # Make a copy to avoid modifying the original
    df_plot = df.copy()

    # Apply rotation first
    if rotation == 90:
        df_plot = df_plot.transpose()
    elif rotation == 180:
        df_plot = df_plot.iloc[::-1, ::-1]
    elif rotation == 270:
        df_plot = df_plot.iloc[::-1, ::-1].transpose()


    mask = np.zeros_like(df_plot, dtype=bool)
    mask[np.triu_indices_from(mask, k=1)] = True  # k=1 excludes the diagonal
    if rotation == 90 or rotation == 270:
        mask = np.transpose(mask)
    elif rotation == 180:
        mask = np.flip(mask)

    plt.figure(figsize=(12, 10))
    sns.heatmap(
        df_plot,
        annot=True,
        fmt=".2f",
        mask=mask,
        cmap="coolwarm",
        vmin=lower_legend,
        vmax=upper_legend,
        annot_kws={"size": 8},
        xticklabels=df_plot.columns,
        yticklabels=df_plot.index,
        cbar_kws={"label": "ANI (%)"}
    )
    plt.xticks(fontsize=10, rotation=45, ha="right")
    plt.yticks(fontsize=10)
    plt.title(title, fontsize=14)
    plt.tight_layout()
    plt.show()

2.2.4: Create the ANI heatmap

We will produce an ANI matrix for E. coli strains

# Call the function to create the heatmap
plot_ani_heatmap(df=ani_df, title="E. coli ANI Heatmap", rotation =90, lower_legend=99.6, upper_legend=100)

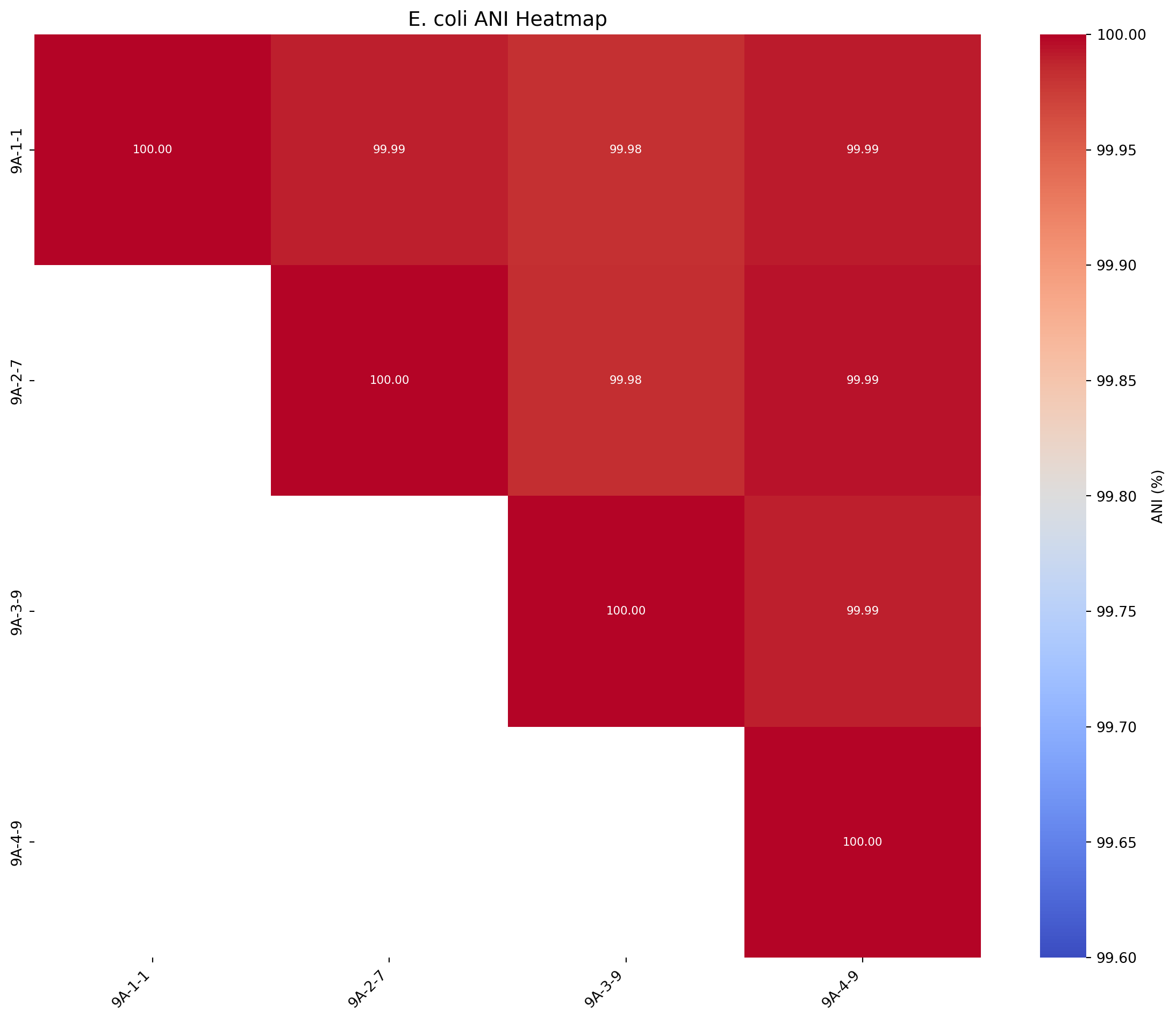

E. coli ANI heatmap

Part 3 - SNP distance matrix

3.1 - Calculating SNP distances with bash

We will determine SNP distances with snippy and snp-dists with 9A-1-1 as reference

We will activate the same conda environment used previously in section 2.1.

But here we will add more programs:

• snippy
• snp-dists
• parallel

3.1.1: Download software

conda activate ANI_SNP_dists
conda install -c conda-forge -c bioconda -c defaults snippy
conda install -c bioconda -c conda-forge snp-dists
conda install bioconda::parallel

3.1.2: Run Snippy

Use snippy to generate all SNPs.

Make a new directory

mkdir SNP_dists

Set reference file for SNP calculations.

REF=9A-1-1.fasta

Use sed to remove .fastq from .txt file

sed 's|fastas/||g' genomes.txt > genome_names.txt
sed -e 's/.fasta//' genomes_names.txt > genome_names.txt

Check the new .txt file containing list of genome names

cat genome_names.txt

The we use parallel on our list of genomes to run snippy:

cat genome_names.txt | parallel snippy --report --outdir SNP_dists/{}_snps --ref $REF --ctgs fastas/{}.fasta

This produces several files:

3.1.3: Run Snippy-core

Use snippy-core from snippy to generate core SNPs

snippy-core --ref $REF --outdir SNP_dists --prefix core SNP_dists/*_snps

This produces several files:

• core.full.aln: The full core genome alignment in FASTA format.
• core.aln: The core SNP alignment in FASTA format (only variable sites).
• core.tab: A table summarizing the SNP differences.

3.1.4: Generate a Pairwise SNP Distance Matrix

Once you have the core SNP alignment (core.aln), use snp-dists to calculate pairwise SNP distances.

snp-dists SNP_dists/core.aln > SNP_dists/snp_matrix.tsv

This will generate a pairwise SNP distance matrix (snp_matrix.tsv) where:

• Rows and columns correspond to isolates.
• The values represent the number of SNP differences between isolates

3.2 - Visualising SNP distance matrix with python

Make sure you have all the required libraries installed, if you need to install them see section 2.2.1

3.2.1: Read and clean the data

# Read the SNP matrix with first column as row index
snp_df = pd.read_csv("SNP_dists/snp_matrix.tsv", sep="\t", index_col=0)

# Remove reference file
snp_df = snp_df.drop("Reference", axis=1)
snp_df = snp_df.drop("Reference", axis=0)

# Remove "_snps" from column names
snp_df.columns = snp_df.columns.str.replace("_snps", "")

# Remove "_snps" from index names
snp_df.index = snp_df.index.str.replace("_snps", "")

# Verify it loaded correctly
print(snp_df.head())

                 9A-1-1  9A-2-7  9A-3-9  9A-4-9
snp-dists 0.8.2
9A-1-1                0       3       1      10
9A-2-7                3       0       2      11
9A-3-9                1       2       0       9
9A-4-9               10      11       9       0

3.2.2: Create a function which makes a SNP distance heatmap

def create_snp_heatmap(df, title="ANI Heatmap", rotation=0, lower_legend=95, upper_legend=100):
    # Make a copy to avoid modifying the original
    df_plot = df.copy()

    # Apply rotation first
    if rotation == 90:
        df_plot = df_plot.transpose()
    elif rotation == 180:
        df_plot = df_plot.iloc[::-1, ::-1]
    elif rotation == 270:
        df_plot = df_plot.iloc[::-1, ::-1].transpose()

    mask = np.zeros_like(df_plot, dtype=bool)
    mask[np.triu_indices_from(mask, k=1)] = True  # k=1 excludes the diagonal
    if rotation == 90 or rotation == 270:
        mask = np.transpose(mask)
    elif rotation == 180:
        mask = np.flip(mask)

    plt.figure(figsize=(12, 10))
    sns.heatmap(
        df_plot,
        annot=True,
        fmt=".2f",
        mask=mask,
        cmap="coolwarm",
        vmin=lower_legend,
        vmax=upper_legend,
        annot_kws={"size": 8},
        xticklabels=df_plot.columns,
        yticklabels=df_plot.index,
        cbar_kws={"label": "SNP count"}
    )
    plt.xticks(fontsize=10, rotation=45, ha="right")
    plt.yticks(fontsize=10)
    plt.title(title, fontsize=14)
    plt.tight_layout()
    plt.show()

3.2.3: Create the SNP distance heatmaps

Next we will produce an SNP distance matrix for E. coli strains

# Call the function to create the heatmap
fig_title = "SNP distances E. coli"
create_snp_heatmap(title=fig_title, df = snp_df, rotation=90, lower_legend=0, upper_legend=50)

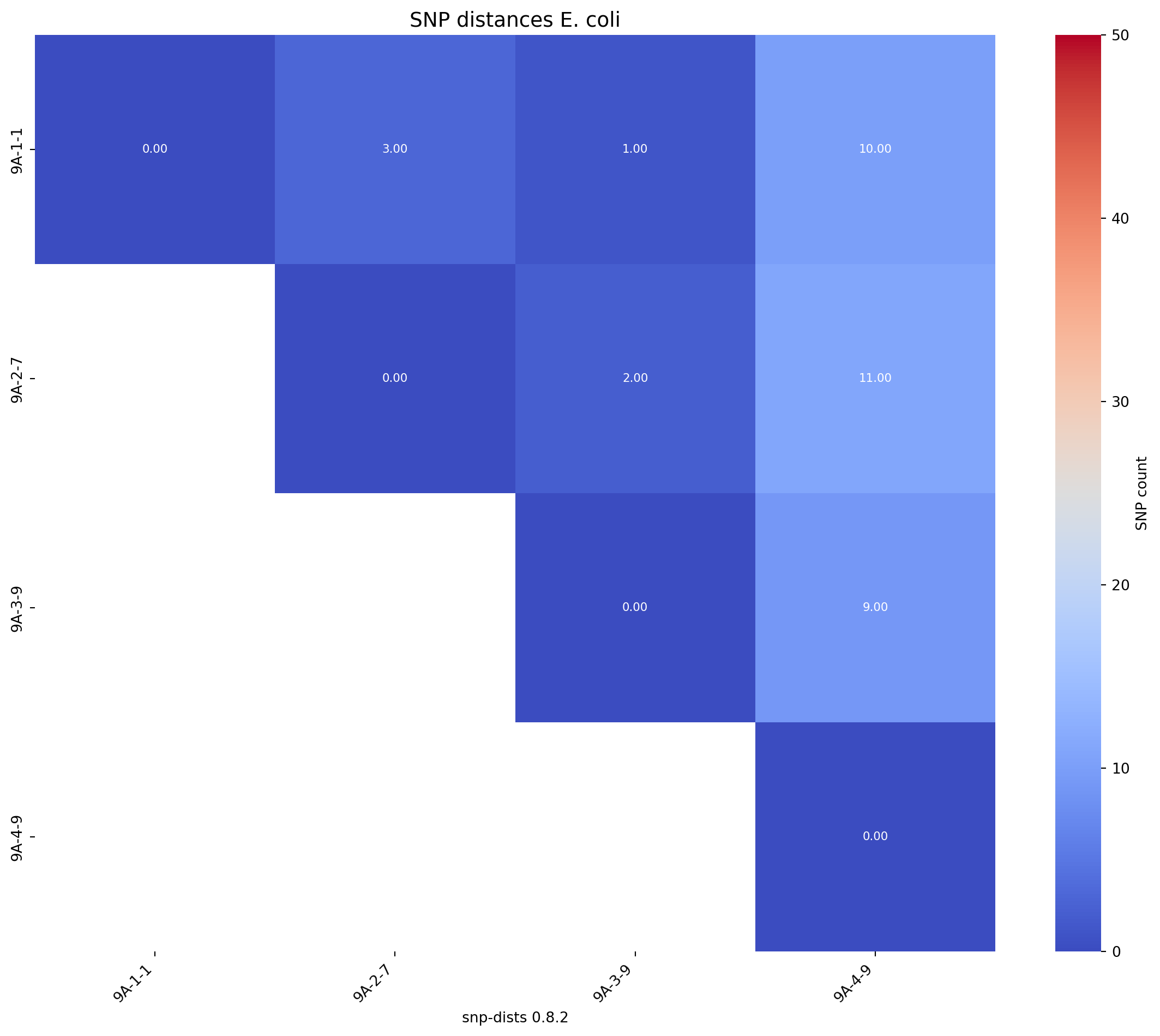

E. coli SNP distance heatmap
