1: ANI and SNP distance matrices

Introduction

This tutorial will take n genome sequences and run algorithms to determine average nucleotide idenitities (ANI) and core genome single nucleotide polymorphisms (SNPs), visualising the distances as heatmaps in python.

This workflow uses JSpeciesWS for ANI, SNP-dists for SNP distances, and seaborn and matplotlib in python to visualise the distances as heatmaps.

For a more in-depth tutorial on using ANI and SNP distances to determine isolate relatedness see my ANI and SNP distances github repo.

Part 1 - ANI matrix with python

1.1: Install libraries

# Install libraries as necessary

#pip install openpyxl
#pip install pandas
#pip install matplotlib
#pip install seaborn
#pip install numpy

#import importlib.metadata

Next load the libraries

import pandas as pd
import matplotlib.pyplot as plt
import matplotlib as mpl
import seaborn as sns
import numpy as np

1.2: Create a function which makes a ANI heatmap

def create_ani_heatmap_rotate(title, input_file, rotation=0, lower_legend=90, upper_legend=100):
    """
    Reads ANI values from a table and creates a triangular heatmap with rotation options.

    Parameters:
        input_file (str): Path to the Excel file containing the ANI table.
        rotation (int): Rotation angle for the heatmap (0, 90, 180, 270).
        output_file_png (str): Path to save the generated heatmap as a PNG file.
        output_file_svg (str): Path to save the generated heatmap as an SVG file.
    """
    # Load the table, ensuring the first column is used as row labels
    ani_table = pd.read_excel(input_file, index_col=0)

    # Ensure all values are numeric (convert strings to floats if necessary)
    ani_table = ani_table.apply(pd.to_numeric, errors='coerce')

    # Check for and handle any missing (NaN) values
    if ani_table.isnull().values.any():
        print("Warning: Missing or invalid values found. Filling with 0.")
        ani_table.fillna(0, inplace=True)

    # Rotate the ANI table if necessary
    if rotation == 90:
        ani_table = ani_table.transpose()
    elif rotation == 180:
        ani_table = ani_table.iloc[::-1, ::-1]
    elif rotation == 270:
        ani_table = ani_table.transpose().iloc[::-1, ::-1]
    elif rotation not in [0, 90, 180, 270]:
        raise ValueError("Rotation must be 0, 90, 180, or 270 degrees.")

    # Generate a mask for the upper triangle (rotate mask based on rotation)
    mask = np.triu(np.ones_like(ani_table, dtype=bool))
    if rotation == 90 or rotation == 270:
        mask = np.transpose(mask)
    elif rotation == 180:
        mask = np.flip(mask)

    # Plot the heatmap
    plt.figure(figsize=(12, 10))  # Adjust figure size
    sns.heatmap(
        ani_table,
        annot=True,
        fmt=".1f",
        mask=mask,
        cmap="coolwarm",
        vmin=lower_legend,  # Set fixed color scale minimum
        vmax=upper_legend,  # Set fixed color scale maximum
        annot_kws={"size": 8},  # Adjust annotation text size
        xticklabels=ani_table.columns,
        yticklabels=ani_table.index,
        cbar_kws={"label": "ANI (%)"}
    )
    plt.xticks(fontsize=10, rotation=45, ha="right")  # Adjust x-axis ticks
    plt.yticks(fontsize=10)  # Adjust y-axis ticks
    plt.title(f"{title}", fontsize=14)  # Add title
    plt.tight_layout()  # Adjust padding
    plt.show()

1.3: Create the ANI heatmaps

First we will produce an ANI matrix for Klebsiella pneumoniae species types @KpSc-ANI

# Call the function to create the heatmap
fig_title = "ANI KpSc"
input_file = "../data/JSpeciesWS_all_hybracter_1448_LR_FC1654_FC2240_UNI_ANIb_half_triangle_FC_rearranged_Klebsiella_spp.xlsx"
create_ani_heatmap_rotate(title=fig_title, input_file=input_file, rotation=90, lower_legend=93, upper_legend=100)

Warning: Missing or invalid values found. Filling with 0.

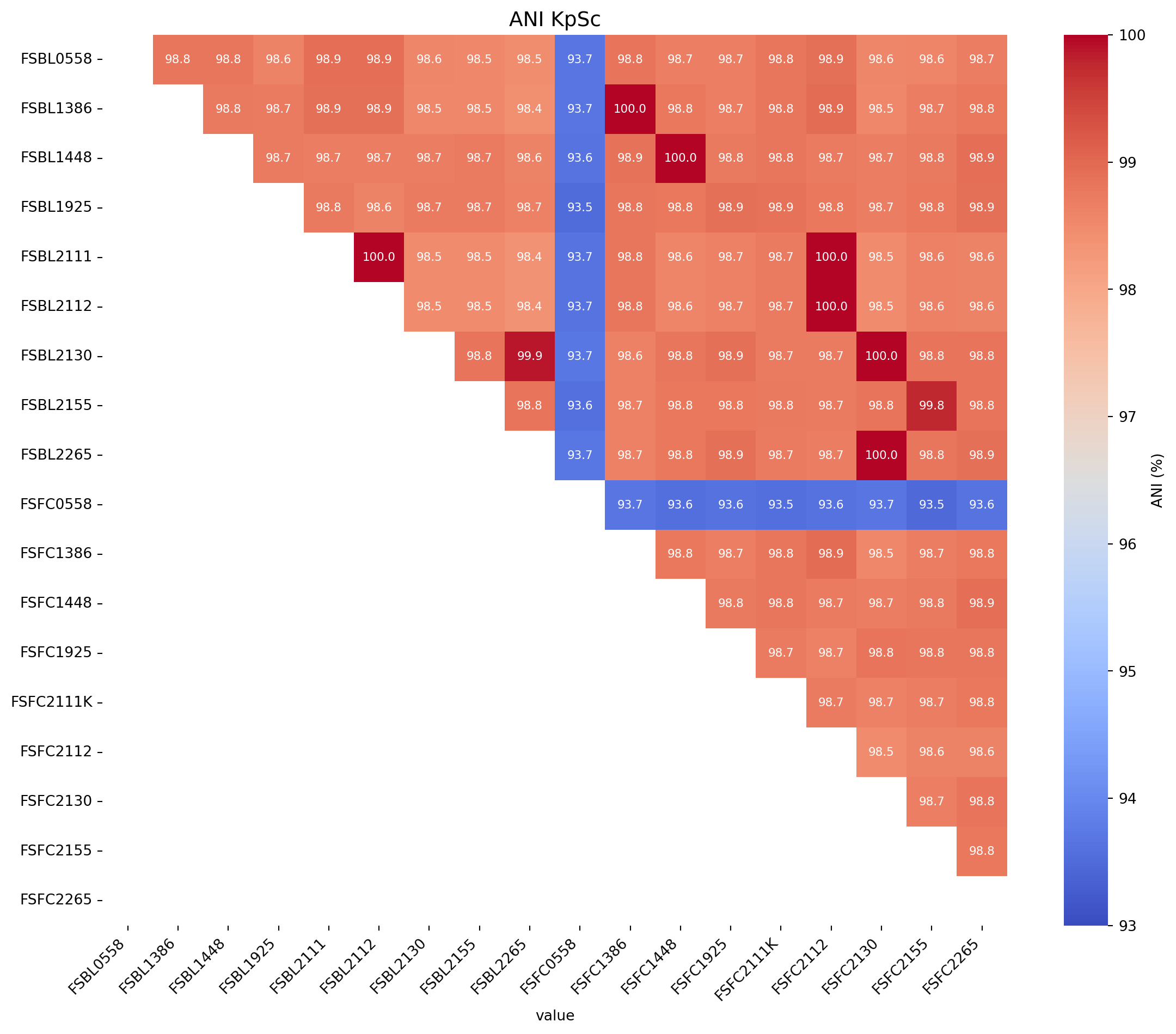

KpSc ANI heatmap

Next we will produce an ANI matrix for E. coli species types @Ec-ANI

# Call the function to create the heatmap
fig_title = "ANI E.coli"
input_file = "../data/JSpeciesWS_all_hybracter_1448_LR_FC1654_FC2240_UNI_ANIb_half_triangle_FC_rearranged_E.coli.xlsx"
create_ani_heatmap_rotate(title=fig_title, input_file=input_file, rotation=90, lower_legend=93, upper_legend=100)

Warning: Missing or invalid values found. Filling with 0.

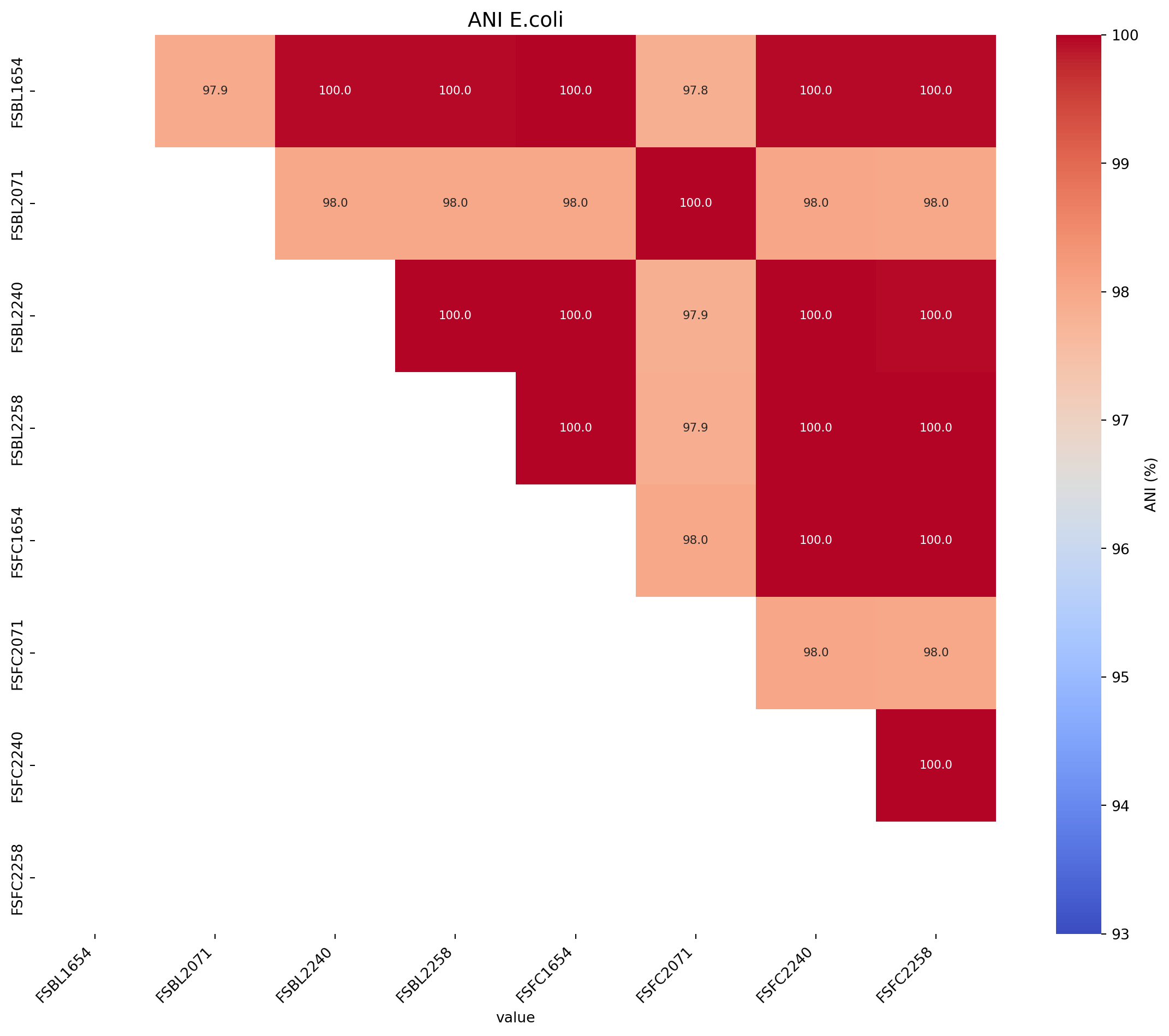

E. coli ANI heatmap

Part 2 - SNP distance matrix with python

Make sure you have all the required libraries installed, if you need to install them see Part 1.1: Install libraries

2.1: Create a function which makes a SNP distance heatmap

def create_snp_heatmap(title, input_file, rotation=0):
    """
    Reads ANI values from a table and creates a triangular heatmap.

    Parameters:
        input_file (str): Path to the Excel file containing the ANI table.
        output_file (str): Path to save the generated heatmap.
    """
    # Load the table, ensuring the first column is used as row labels
    ani_table = pd.read_excel(input_file, index_col=0)

    # Ensure all values are numeric (convert strings to floats if necessary)
    ani_table = ani_table.apply(pd.to_numeric, errors='coerce')

    # Check for and handle any missing (NaN) values
    if ani_table.isnull().values.any():
        print("Warning: Missing or invalid values found. Filling with 0.")
        ani_table.fillna(0, inplace=True)

   # Rotate the ANI table if necessary
    if rotation == 90:
        ani_table = ani_table.transpose()
    elif rotation == 180:
        ani_table = ani_table.iloc[::-1, ::-1]
    elif rotation == 270:
        ani_table = ani_table.transpose().iloc[::-1, ::-1]
    elif rotation not in [0, 90, 180, 270]:
        raise ValueError("Rotation must be 0, 90, 180, or 270 degrees.")

    # Generate a mask for the upper triangle (rotate mask based on rotation)
    mask = np.triu(np.ones_like(ani_table, dtype=bool))
    if rotation == 90 or rotation == 270:
        mask = np.transpose(mask)
    elif rotation == 180:
        mask = np.flip(mask)

    # Plot the heatmap
    plt.figure(figsize=(12, 10))  # Adjust figure size
    sns.heatmap(
        ani_table,
        annot=True,
        fmt=".1f",
        mask=mask,
        cmap="coolwarm", # Colours for legend: options: coolwarm, RdBu
        annot_kws={"size": 8},  # Adjust annotation text size
        xticklabels=ani_table.columns,
        yticklabels=ani_table.index,
        cbar_kws={"label": "SNP count"}
    )
    plt.xticks(fontsize=10, rotation=45, ha="right")  # Adjust x-axis ticks
    plt.yticks(fontsize=10)  # Adjust y-axis ticks
    plt.title(f"{title}", fontsize=14)  # Add title
    plt.tight_layout()  # Adjust padding
    plt.show()

2.2: Create the SNP distance heatmaps

First we will produce an SNP distance matrix for Klebsiella pneumoniae species types @KpSc-SNP

# Call the function to create the heatmap
fig_title = "SNP distances KpSc"
input_file = "../data/snp_matrix_all_R1386_half_triangle_FC_Klebsiella_spp.xlsx"
create_snp_heatmap(title=fig_title, input_file=input_file, rotation=90)

Warning: Missing or invalid values found. Filling with 0.

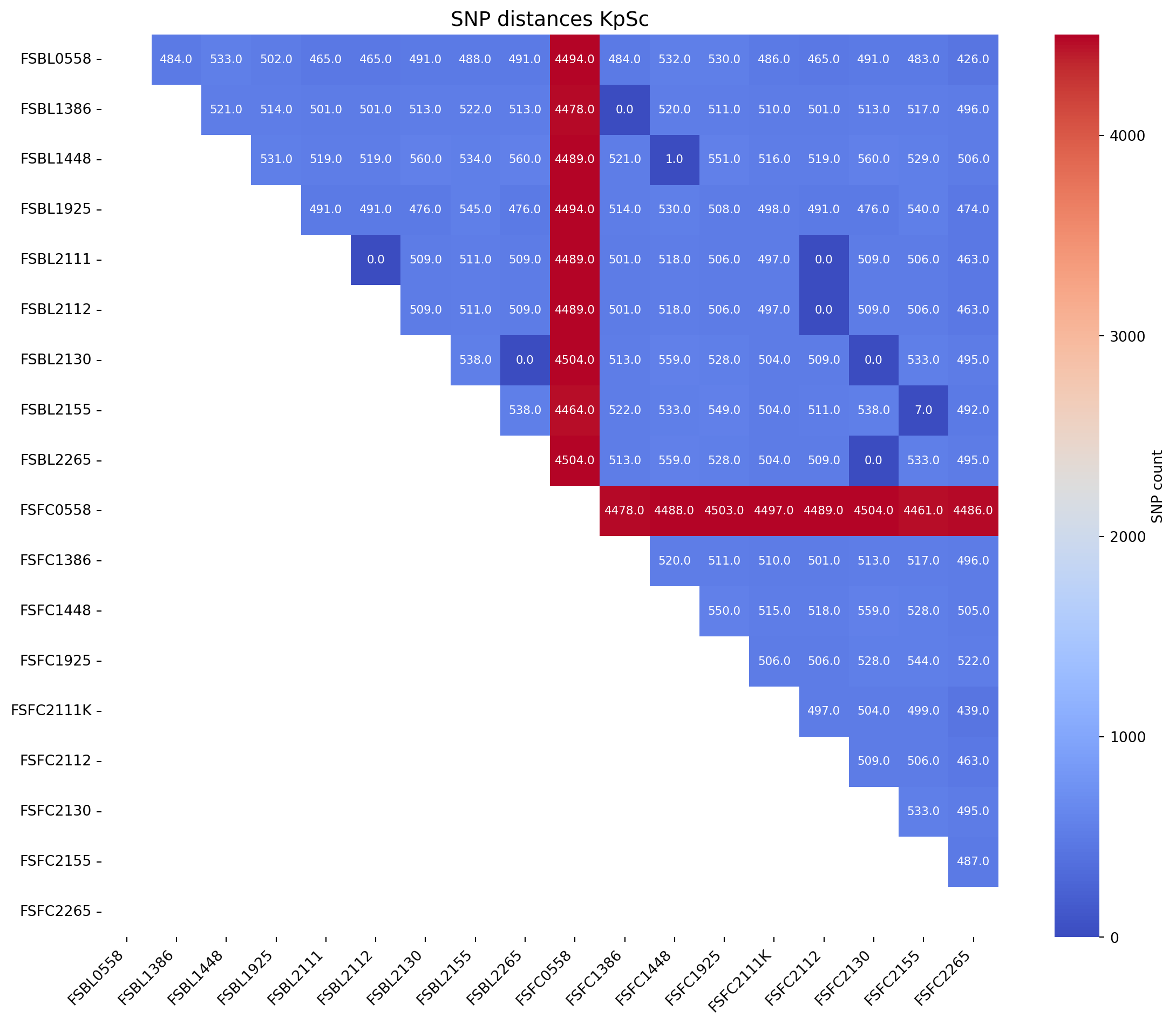

KpSc SNP distance heatmap

Next we will produce an SNP distance matrix for E. coli species types @Ec-SNP

# Call the function to create the heatmap
fig_title = "SNP distances E. coli"
input_file = "../data/snp_matrix_all_R1386_half_triangle_FC_E.coli.xlsx"
create_snp_heatmap(title=fig_title, input_file=input_file, rotation=90)

Warning: Missing or invalid values found. Filling with 0.

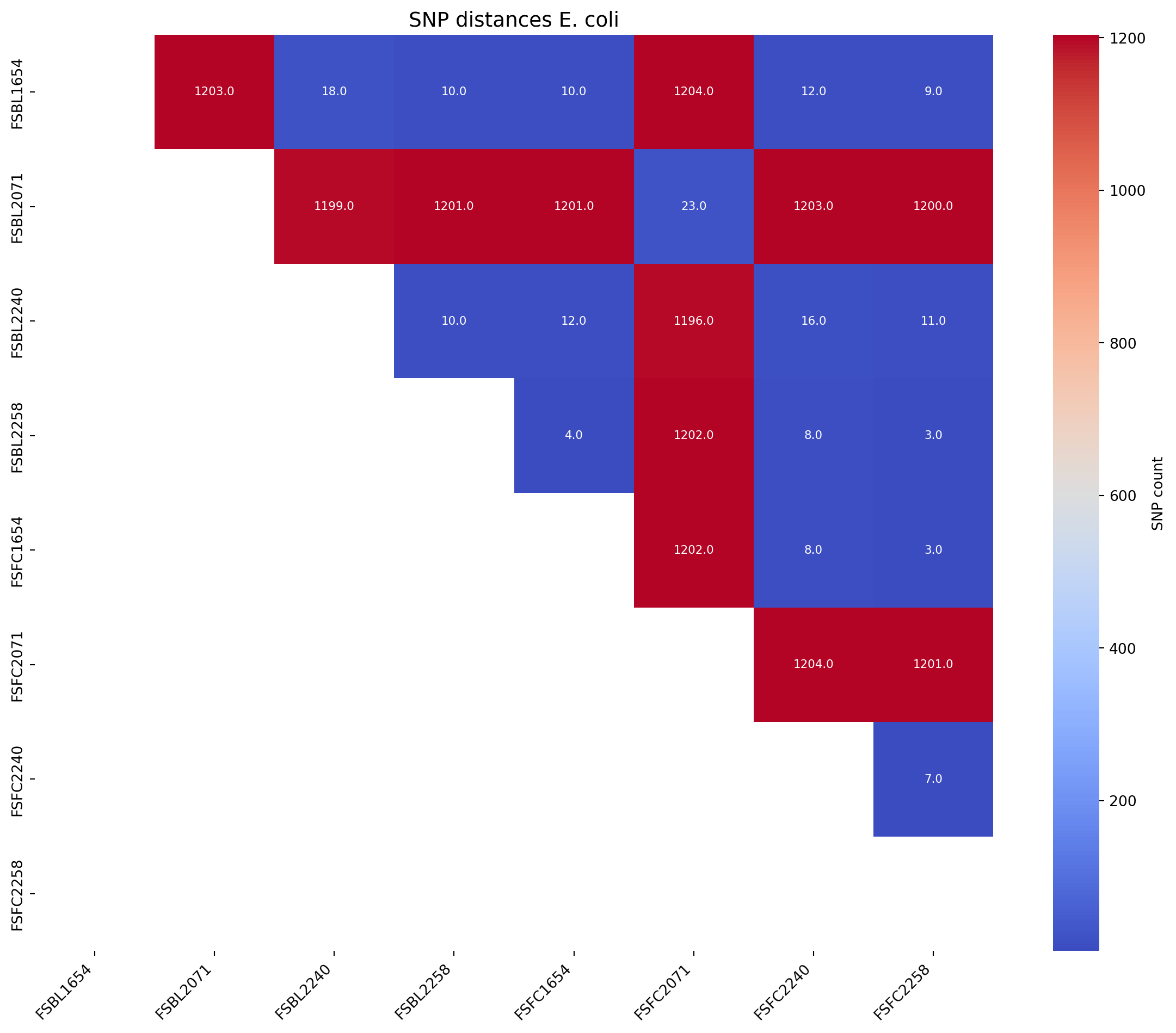

E. coli SNP distance heatmap
