ANI and SNP distance matrices for specific STs

Introduction

This tutorial will take n genome sequences and run algorithms to determine average nucleotide idenitities (ANI) and core genome single nucleotide polymorphisms (SNPs), visualising the distances as heatmaps in python.

This workflow uses fastANI for ANI, snippy and snp-dists for SNP distances, and seaborn and matplotlib in python to visualise the distances as heatmaps. For any analysis in bash it uses the conda package manager so make sure you have that installed.

Part 1 - Seperating genomes into ST

First use cat to create a accessions.txt file

cat > ST38_seqs.txt

Type your accessions directly into the terminal, or alternately copy and paste these to follow this example:

E84
E98
E141
E158
E165
A45

Type Ctrl + D to save and exit

You now have an accessions.txt containing the accessions you want to download.

Check the contents

cat ST38_seqs.txt

Once you are happy with the accessions in your accessions.txt file, type the following command:

mkdir ST38_seqs

cat ST38_seqs.txt | parallel ls all_assemblies_pilon/{}.fasta

cat ST38_seqs.txt | parallel cp all_assemblies_pilon/{}.fasta ST38_seqs

ls ST38_seqs

Part 2 - ANI matrix

2.1 - Calculating ANI with bash

We will be using fastANI with bioconda to determine ANI values for all of genomes compared against each other.

# conda create -n ANI_SNP_dists -y python=3.8
conda activate ANI_SNP_dists
conda install bioconda::fastani

Create a list of fasta genomes to determine ANI

ls ST38_seqs/*.fasta > ST38_seqs/ST38_fastas.txt

Check the list

cat ST38_seqs/ST38_fastas.txt

For ANI of all vs all run fastANI with all the genomes in your list.

Choosing the --matrix flag will output a matrix, this is what we will use to plot the heatmap

fastANI --ql ST38_seqs/ST38_fastas.txt --rl ST38_seqs/ST38_fastas.txt -o ST38_seqs/ST38_ANI.tsv --matrix

Rename the output matrix

cp ST38_seqs/ST38_ANI.tsv.matrix ST38_seqs/ST38_ANI_matrix.tsv

2.2 - Visualising ANI matrix with python

2.2.1: Install libraries

# Install libraries as necessary

#pip install openpyxl
#pip install pandas
#pip install matplotlib
#pip install seaborn
#pip install numpy

#import importlib.metadata

Next load the libraries

import pandas as pd
import matplotlib.pyplot as plt
import matplotlib as mpl
import matplotlib.patches as mpatches
import seaborn as sns
import numpy as np
from matplotlib.colors import to_rgb
from matplotlib.gridspec import GridSpec

2.2.2: Convert triangular matrix to full square matrix

Firstly we will covert the traingular matrix produced from fastANI to a full square matrix

# Load the file
with open("../data/ST38_ANI_matrix.tsv", "r") as f:
    lines = f.readlines()
    # Skip the first line (header)
    lines = lines[1:]
    # Strip whitespace
    lines = [line.strip() for line in lines if line.strip()]

# Extract strain names from the leftmost column
strain_names = []
values = []

for line in lines:
    parts = line.split("\t")
    strain_names.append(parts[0])
    values.append([float(x) for x in parts[1:]])

n = len(strain_names)
ani_matrix = np.zeros((n, n))

# Fill the lower triangle
for i in range(n):
    for j in range(len(values[i])):
        ani_matrix[i, j] = values[i][j]
        ani_matrix[j, i] = values[i][j]

# Fill the diagonal with 100s
np.fill_diagonal(ani_matrix, 100)

# Create DataFrame
ani_df_ST38 = pd.DataFrame(ani_matrix, index=strain_names, columns=strain_names)

# Remove ".fasta" from column names
ani_df_ST38.columns = ani_df_ST38.columns.str.replace("ST38_seqs/", "")
ani_df_ST38.columns = ani_df_ST38.index.str.replace(".fasta", "")

# Remove ".fasta" from index names
ani_df_ST38.index = ani_df_ST38.index.str.replace("ST38_seqs/", "")
ani_df_ST38.index = ani_df_ST38.index.str.replace(".fasta", "")

# Display to confirm
print(ani_df_ST38.head())

# Remove ".fasta" from column names
ani_df_ST38.columns = ani_df_ST38.columns.str.replace("ST38_seqs/", "")
ani_df_ST38.columns = ani_df_ST38.index.str.replace(".fasta", "")

# Display to confirm
print(ani_df_ST38.head())

ani_df_ST38.to_csv("../tbls/ST38_ANI_matrix_indonesia_trycycle.csv",  # path (and name) of the file to write
    sep=",",                # delimiter ("," by default)
    index=False,            # don’t write row numbers (like R’s row.names = FALSE)
    header=True,            # write out column names
    encoding="utf-8"        # file encoding
)
         ST38_seqs/211_S1  ST38_seqs/222_S11  ST38_seqs/A1_S1  \
211_S1         100.000000          99.947029        99.982414
222_S11         99.947029         100.000000        99.970627
A1_S1           99.982414          99.970627       100.000000
B4_S10          99.440842          99.426079        99.460754
D5_S23          99.473862          99.444626        99.477219

         ST38_seqs/B4_S10  ST38_seqs/D5_S23  ST38_seqs/E113  ST38_seqs/E117  \
211_S1          99.440842         99.473862       99.960251       99.966888
222_S11         99.426079         99.444626       99.973358       99.960297
A1_S1           99.460754         99.477219       99.963959       99.977356
B4_S10         100.000000         99.889023       99.462616       99.440575
D5_S23          99.889023        100.000000       99.476875       99.442474

         ST38_seqs/E136  ST38_seqs/E153  ST38_seqs/E177  ST38_seqs/E79  \
211_S1        99.403992       99.486908       99.410881      99.724228
222_S11       99.357895       99.453064       99.361801      99.649956
A1_S1         99.388702       99.448425       99.394821      99.730743
B4_S10        99.879967       99.367264       99.894257      99.411072
D5_S23        99.845367       99.357643       99.913948      99.360580

         ST38_seqs/H200
211_S1        99.985268
222_S11       99.977982
A1_S1         99.986038
B4_S10        99.453735
D5_S23        99.467850
             211_S1     222_S11       A1_S1      B4_S10      D5_S23  \
211_S1   100.000000   99.947029   99.982414   99.440842   99.473862
222_S11   99.947029  100.000000   99.970627   99.426079   99.444626
A1_S1     99.982414   99.970627  100.000000   99.460754   99.477219
B4_S10    99.440842   99.426079   99.460754  100.000000   99.889023
D5_S23    99.473862   99.444626   99.477219   99.889023  100.000000

              E113       E117       E136       E153       E177        E79  \
211_S1   99.960251  99.966888  99.403992  99.486908  99.410881  99.724228
222_S11  99.973358  99.960297  99.357895  99.453064  99.361801  99.649956
A1_S1    99.963959  99.977356  99.388702  99.448425  99.394821  99.730743
B4_S10   99.462616  99.440575  99.879967  99.367264  99.894257  99.411072
D5_S23   99.476875  99.442474  99.845367  99.357643  99.913948  99.360580

              H200
211_S1   99.985268
222_S11  99.977982
A1_S1    99.986038
B4_S10   99.453735
D5_S23   99.467850

2.2.3: Write a function to create the ANI heatmaps

Next we write a function which masks half the dataset to create a triangular heatmap, with the added functionality of rotating the heatmap

def plot_ani_heatmap(df, title="ANI Heatmap", rotation=0, lower_legend=95, upper_legend=100):
    # Make a copy to avoid modifying the original
    df_plot = df.copy()

    # Apply rotation first
    if rotation == 90:
        df_plot = df_plot.transpose()
    elif rotation == 180:
        df_plot = df_plot.iloc[::-1, ::-1]
    elif rotation == 270:
        df_plot = df_plot.iloc[::-1, ::-1].transpose()


    mask = np.zeros_like(df_plot, dtype=bool)
    mask[np.triu_indices_from(mask, k=0)] = True  # k=1 excludes the diagonal
    if rotation == 90 or rotation == 270:
        mask = np.transpose(mask)
    elif rotation == 180:
        mask = np.flip(mask)

    plt.figure(figsize=(12, 10))
    sns.heatmap(
        df_plot,
        annot=True,
        fmt=".2f",
        mask=mask,
        cmap="coolwarm",
        vmin=lower_legend,
        vmax=upper_legend,
        annot_kws={"size": 8},
        xticklabels=df_plot.columns,
        yticklabels=df_plot.index,
        cbar_kws={"label": "ANI (%)"}
    )
    plt.xticks(fontsize=10, rotation=45, ha="right")
    plt.yticks(fontsize=10)
    plt.title(title, fontsize=14)
    plt.tight_layout()
    plt.show()

2.2.4: Create the ANI heatmap

We will produce an ANI matrix for E. coli species types @Ec-ANI

# Call the function to create the heatmap
plot_ani_heatmap(df=ani_df_ST38, title="ST38 ANI Heatmap", rotation =90, lower_legend=99.5, upper_legend=100)

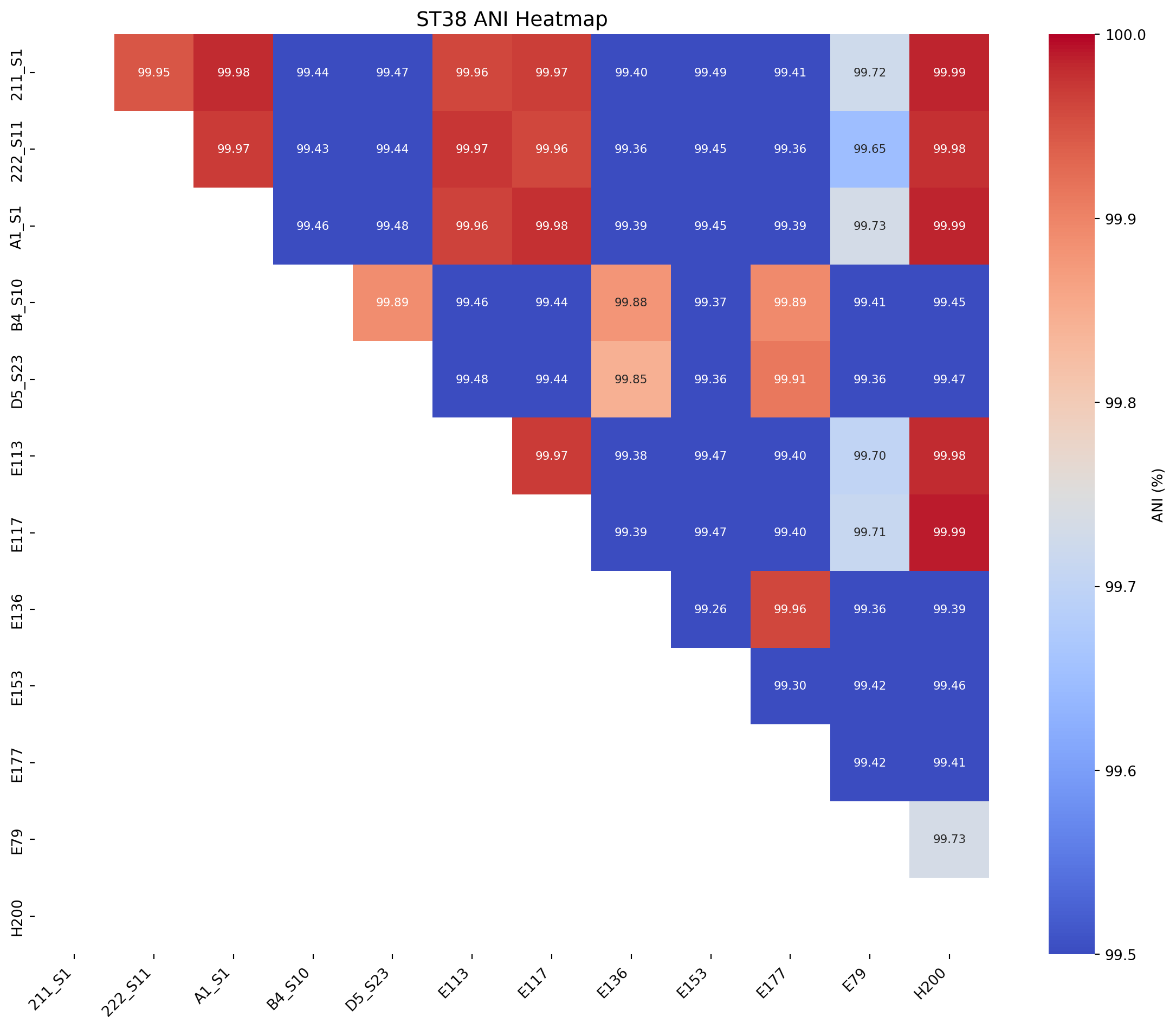

ST38 ANI heatmap

Rodriguez et. al (2024) analysed 18,123 genomes to determine where the thresholds lay which distinguished certain taxonomic ranks:

same species - 95% same sequence type - 99.5% same strain - 99.9%

2.2.5: Write a function to create the ANI heatmaps and save

Next we write a function which masks half the dataset to create a triangular heatmap, with the added functionality of rotating the heatmap

def save_ani_heatmap(df, title="ANI Heatmap", rotation=0, lower_legend=95, upper_legend=100, output_file_png = "ani_heatmap_from_table_A_Z.png", output_file_svg = "ani_heatmap_from_table_A_Z.svg"):
    # Make a copy to avoid modifying the original
    df_plot = df.copy()

    # Apply rotation first
    if rotation == 90:
        df_plot = df_plot.transpose()
    elif rotation == 180:
        df_plot = df_plot.iloc[::-1, ::-1]
    elif rotation == 270:
        df_plot = df_plot.iloc[::-1, ::-1].transpose()


    mask = np.zeros_like(df_plot, dtype=bool)
    mask[np.triu_indices_from(mask, k=0)] = True  # k=0 excludes the diagonal
    if rotation == 90 or rotation == 270:
        mask = np.transpose(mask)
    elif rotation == 180:
        mask = np.flip(mask)

    plt.figure(figsize=(12, 10))
    sns.heatmap(
        df_plot,
        annot=True,
        fmt=".2f",
        mask=mask,
        cmap="coolwarm",
        vmin=lower_legend,
        vmax=upper_legend,
        annot_kws={"size": 8},
        xticklabels=df_plot.columns,
        yticklabels=df_plot.index,
        cbar_kws={"label": "ANI (%)"}
    )
    plt.xticks(fontsize=10, rotation=45, ha="right")
    plt.yticks(fontsize=10)
    plt.title(title, fontsize=14)
    plt.tight_layout()
    plt.savefig(output_file_png, dpi=300)  # Save the heatmap
    plt.savefig(output_file_svg, format="svg", dpi=300)
    print(f"Heatmap saved to {output_file_png}")
    print(f"Heatmap saved to {output_file_svg}")
    plt.show()

2.2.4: Save the ANI heatmap

# ST38
save_ani_heatmap(df=ani_df_ST38, title="ST38 ANI Heatmap", output_file_png="../imgs/ani_heatmap_for_ST38_trycycle.png", output_file_svg="../imgs/ani_heatmap_for_ST38_trycycle.svg", rotation=90, lower_legend=99.5, upper_legend=100)
Heatmap saved to ../imgs/ani_heatmap_for_ST38_trycycle.png
Heatmap saved to ../imgs/ani_heatmap_for_ST38_trycycle.svg

Determine the sample with the highest associations across all samples i.e. the most interconnected sample - we will use this for the reference for snippy

# Replace diagonal with NaN so self-comparisons don't inflate the result
ani_df_ST38_no_diag = ani_df_ST38.copy()
for i in ani_df_ST38_no_diag.index:
    ani_df_ST38_no_diag.loc[i, i] = None

# Calculate the average ANI to other samples for each sample
mean_ani_ST38 = ani_df_ST38_no_diag.mean(axis=1)  # row-wise mean

# Sort to find the sample with the highest connectivity
most_connected_ST38 = mean_ani_ST38.sort_values(ascending=False)

# Show top 5 most interconnected samples
print("Most interconnected samples in ST38 based on mean ANI:")
print(most_connected_ST38.head())
Most interconnected samples in ST38 based on mean ANI:
H200      99.711721
211_S1    99.707506
A1_S1     99.707369
E113      99.702396
E117      99.701797
dtype: float64

Part 3 - SNP distance matrix

3.1 - Calculating SNP distances with bash

We will determine SNP distances with snippy and snp-dists with 9A-1-1 as reference

We will activate the same conda environment used previously in section 2.1.

But here we will add more programs:

3.1.1: Download software

conda activate ANI_SNP_dists
conda install -c conda-forge -c bioconda -c defaults snippy
conda install -c bioconda -c conda-forge snp-dists
conda install bioconda::parallel
# Show top 5 most interconnected samples
print("Most interconnected samples in ST38 based on mean ANI:")
print(most_connected_ST38.head())
Most interconnected samples in ST38 based on mean ANI:
H200      99.711721
211_S1    99.707506
A1_S1     99.707369
E113      99.702396
E117      99.701797
dtype: float64

3.1.2: Run Snippy

Use snippy to generate all SNPs.

Set reference file for SNP calculations.

# Change this time
REF=ST38_seqs/H200.fasta

Use sed to remove .fastq from .txt file

ls ST38_seqs/*.fasta > ST38_seqs/ST38_fastas.txt
sed 's|ST38_seqs/||g' ST38_seqs/ST38_fastas.txt > ST38_seqs/genome_names_1.txt
sed -e 's/\.fasta.*//' ST38_seqs/genome_names_1.txt > ST38_seqs/genome_names.txt

Check the new .txt file containing list of genome names

cat ST38_seqs/genome_names.txt

cat ST38_seqs/genome_names.txt | parallel ls ST38_seqs/{}.fasta

The we use parallel on our list of genomes to run snippy:

cat ST38_seqs/genome_names.txt | parallel snippy --report --outdir ST38_seqs/{}_snps --ref $REF --ctgs ST38_seqs/{}.fasta

This produces several files:

3.1.3: Run Snippy-core

Use snippy-core from snippy to generate core SNPs

snippy-core --ref $REF --prefix core ST38_seqs/*_snps
# move files
mv *core* ST38_seqs/

This produces several files:

  • core.full.aln: The full core genome alignment in FASTA format.
  • core.aln: The core SNP alignment in FASTA format (only variable sites).
  • core.tab: A table summarizing the SNP differences.

3.1.4: Generate a Pairwise SNP Distance Matrix

Once you have the core SNP alignment (core.aln), use snp-dists to calculate pairwise SNP distances.

snp-dists ST38_seqs/core.aln > ST38_seqs/ST38_snp_matrix.tsv

This will generate a pairwise SNP distance matrix (snp_matrix.tsv) where:

  • Rows and columns correspond to isolates.
  • The values represent the number of SNP differences between isolates

3.2 - Visualising SNP distance matrix with python

Make sure you have all the required libraries installed, if you need to install them see section 2.2.1

3.2.1: Read and clean the data

# Read the SNP matrix with first column as row index
snp_df_ST38 = pd.read_csv("../data/ST38_snp_matrix.tsv", sep="\t", index_col=0)

# Remove reference file
snp_df_ST38 = snp_df_ST38.drop("Reference", axis=1)
snp_df_ST38 = snp_df_ST38.drop("Reference", axis=0)

# Remove "_snps" from column names
snp_df_ST38.columns = snp_df_ST38.columns.str.replace("_snps", "")

# Remove "_snps" from index names
snp_df_ST38.index = snp_df_ST38.index.str.replace("_snps", "")

# Verify it loaded correctly
print(snp_df_ST38.head())
                 211_S1  222_S11  A1_S1  B4_S10  D5_S23   E113   E117   E136  \
snp-dists 0.8.2
211_S1                0       35     34   13076   13091     36     33  13102
222_S11              35        0     45   13059   13074     13     44  13085
A1_S1                34       45      0   13086   13099     46     43  13112
B4_S10            13076    13059  13086       0     167  13060  13085    180
D5_S23            13091    13074  13099     167       0  13075  13100    187

                  E153   E177    E79   H200
snp-dists 0.8.2
211_S1            8969  11859   2454     33
222_S11           8952  11844   2437     44
A1_S1             8979  11867   2464      1
B4_S10           15624   1430  13149  13085
D5_S23           15637   1437  13164  13100

3.2.2: Create a function which makes a SNP distance heatmap

def create_snp_heatmap(df, title="SNP Heatmap", rotation=0, lower_legend=95, upper_legend=100):
    # Make a copy to avoid modifying the original
    df_plot = df.copy()

    # Apply rotation first
    if rotation == 90:
        df_plot = df_plot.transpose()
    elif rotation == 180:
        df_plot = df_plot.iloc[::-1, ::-1]
    elif rotation == 270:
        df_plot = df_plot.iloc[::-1, ::-1].transpose()

    mask = np.zeros_like(df_plot, dtype=bool)
    mask[np.triu_indices_from(mask)] = True  # k=1 excludes the diagonal
    if rotation == 90 or rotation == 270:
        mask = np.transpose(mask)
    elif rotation == 180:
        mask = np.flip(mask)

    plt.figure(figsize=(12, 10))
    sns.heatmap(
        df_plot,
        annot=True,
        fmt=".2f",
        mask=mask,
        cmap="RdBu",
        vmin=lower_legend,
        vmax=upper_legend,
        annot_kws={"size": 8},
        xticklabels=df_plot.columns,
        yticklabels=df_plot.index,
        cbar_kws={"label": "SNP count"}
    )
    plt.xticks(fontsize=10, rotation=45, ha="right")
    plt.yticks(fontsize=10)
    plt.title(title, fontsize=14)
    plt.tight_layout()
    plt.show()

3.2.3: Create the SNP distance heatmaps

Next we will produce an SNP distance matrix for E. coli species types @Ec-SNP

# Call the function to create the heatmap
fig_title = "ST38 SNP distance heatmap"
create_snp_heatmap(title=fig_title, df = snp_df_ST38, rotation=90, lower_legend=0, upper_legend=100)

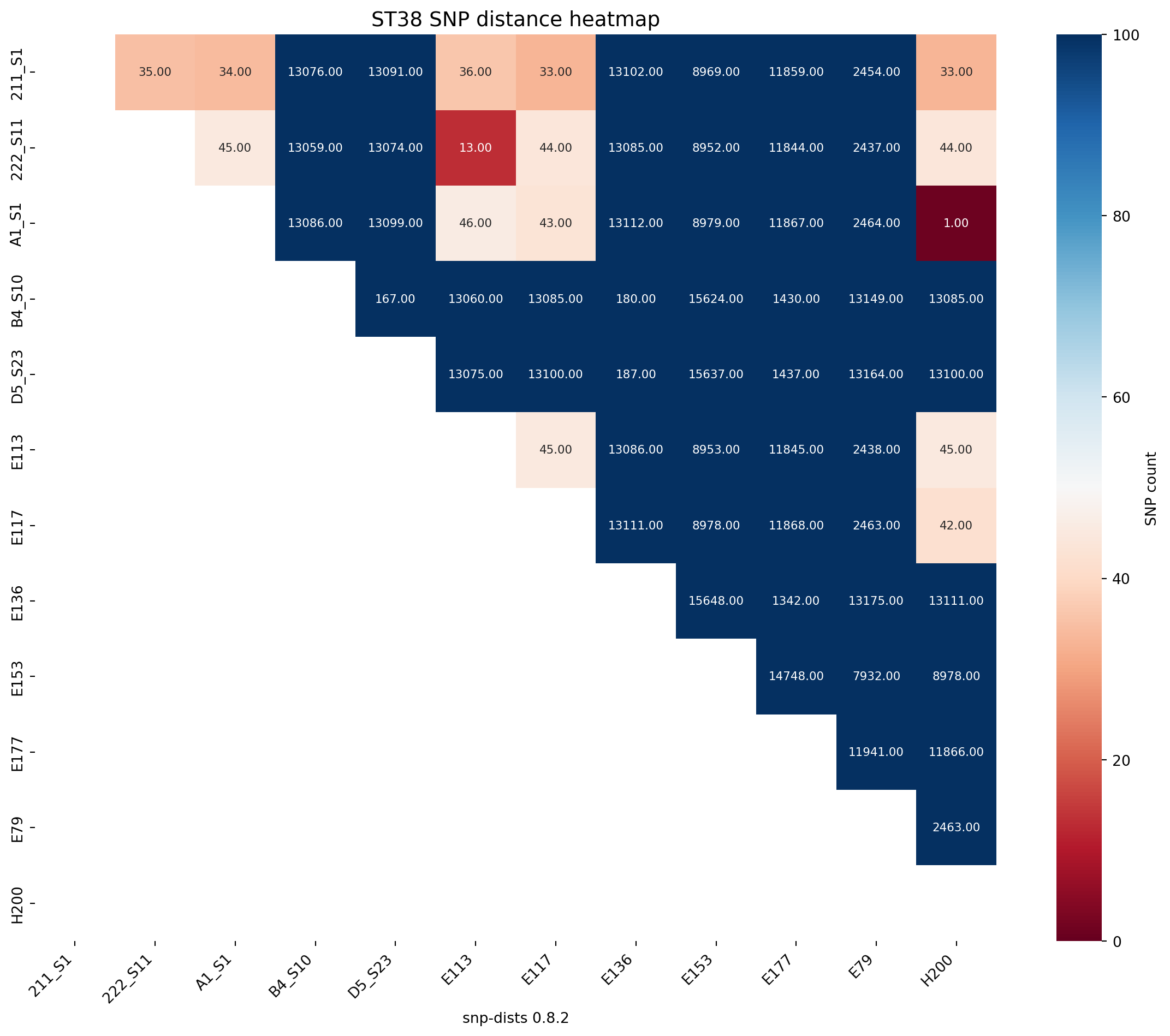

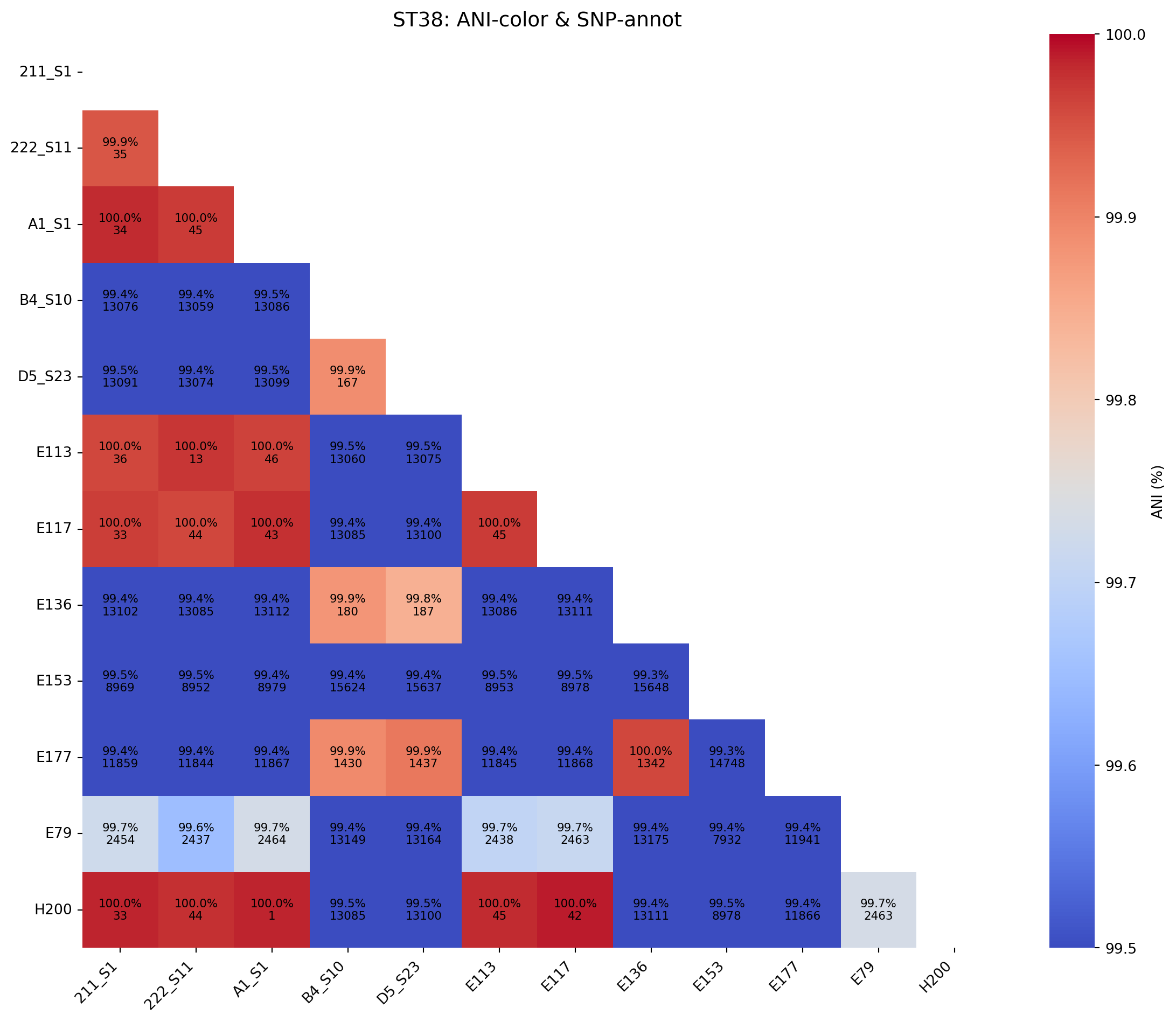

E. coli SNP distance heatmap

2.2.5: Write a function to create the SNP heatmaps and save

Next we write a function which masks half the dataset to create a triangular heatmap, with the added functionality of rotating the heatmap

def save_snp_heatmap(df, title="SNP Heatmap", rotation=0, lower_legend=95, upper_legend=100, output_file_png = "snp_heatmap_from_table_A_Z.png", output_file_svg = "snp_heatmap_from_table_A_Z.svg"):
    # Make a copy to avoid modifying the original
    df_plot = df.copy()

    # Apply rotation first
    if rotation == 90:
        df_plot = df_plot.transpose()
    elif rotation == 180:
        df_plot = df_plot.iloc[::-1, ::-1]
    elif rotation == 270:
        df_plot = df_plot.iloc[::-1, ::-1].transpose()


    mask = np.zeros_like(df_plot, dtype=bool)
    mask[np.triu_indices_from(mask, k=0)] = True  # k=0 excludes the diagonal
    if rotation == 90 or rotation == 270:
        mask = np.transpose(mask)
    elif rotation == 180:
        mask = np.flip(mask)

    plt.figure(figsize=(12, 10))
    sns.heatmap(
        df_plot,
        annot=True,
        fmt=".0f",
        mask=mask,
        cmap="RdBu",
        vmin=lower_legend,
        vmax=upper_legend,
        annot_kws={"size": 8},
        xticklabels=df_plot.columns,
        yticklabels=df_plot.index,
        cbar_kws={"label": "Number of SNPs"}
    )
    plt.xticks(fontsize=10, rotation=45, ha="right")
    plt.yticks(fontsize=10)
    plt.title(title, fontsize=14)
    plt.tight_layout()
    plt.savefig(output_file_png, dpi=300)  # Save the heatmap
    plt.savefig(output_file_svg, format="svg", dpi=300)
    print(f"Heatmap saved to {output_file_png}")
    print(f"Heatmap saved to {output_file_svg}")
    plt.show()

2.2.4: Save the SNP heatmap

# ST38
save_snp_heatmap(df=snp_df_ST38, title="ST38 SNP Heatmap", output_file_png="../imgs/snp_heatmap_for_ST38_trycycle.png", output_file_svg="../imgs/snp_heatmap_for_ST38_trycycle.svg", rotation=90, lower_legend=0, upper_legend=100)
Heatmap saved to ../imgs/snp_heatmap_for_ST38_trycycle.png
Heatmap saved to ../imgs/snp_heatmap_for_ST38_trycycle.svg

Part 4 - Combined ANI and SNP dist matrix

4.1 - Combined ANI and SNP values

def save_dual_annot_heatmap(snp_df,
                            ani_df,
                            color_by="ani",               # "ani" or "snp"
                            title="Dual‐Annotated Heatmap",
                            rotation=0,
                            lower_legend=None,            # if None, auto from data
                            upper_legend=None,
                            output_png="dual_heatmap.png",
                            output_svg="dual_heatmap.svg"):
    # 1) Quick sanity checks
    assert snp_df.shape == ani_df.shape, "Shapes must match"
    assert all(snp_df.index == ani_df.index) and all(snp_df.columns == ani_df.columns)

    # 2) Pick the matrix that drives the color
    if color_by == "ani":
        cmap_df = ani_df
        fmt = "{:.2f}%"
        cbar_label = "ANI (%)"
    elif color_by == "snp":
        cmap_df = snp_df
        fmt = "{:.0f}"
        cbar_label = "SNP distance"
    else:
        raise ValueError("color_by must be 'ani' or 'snp'")

    # 3) Optionally rotate
    def _rotate(df, rot):
        if rot == 90:
            return df.T
        elif rot == 180:
            return df.iloc[::-1, ::-1]
        elif rot == 270:
            return df.iloc[::-1, ::-1].T
        else:
            return df

    cmap_df   = _rotate(cmap_df, rotation)
    ani_df_r  = _rotate(ani_df, rotation)
    snp_df_r  = _rotate(snp_df, rotation)

    # 4) Mask upper triangle (optional; remove if you want full matrix)
    mask = np.zeros_like(cmap_df, dtype=bool)
    mask[np.triu_indices_from(mask, k=0)] = True

    # 5) Determine color‐scale bounds
    vmin = lower_legend if lower_legend is not None else np.nanmin(cmap_df.values)
    vmax = upper_legend if upper_legend is not None else np.nanmax(cmap_df.values)

    # 6) Plot!
    plt.figure(figsize=(12, 10))
    sns.heatmap(
        cmap_df,
        mask=mask,
        cmap="coolwarm" if color_by=="ani" else "RdBu_r",
        vmin=vmin,
        vmax=vmax,
        cbar_kws={"label": cbar_label},
        xticklabels=cmap_df.columns,
        yticklabels=cmap_df.index,
        annot=False
    )

    # 7) Overlay both ANI and SNP text
    for i, row in enumerate(cmap_df.index):
        for j, col in enumerate(cmap_df.columns):
            if mask[i, j]:
                continue
            ani_val = ani_df_r.iloc[i, j]
            snp_val = snp_df_r.iloc[i, j]
            # two‐line text: ANI% on top, SNP below
            txt = f"{ani_val:.1f}%\n{snp_val:.0f}"
            plt.text(j + 0.5, i + 0.5, txt,
                     ha="center", va="center",
                     fontsize=8, color="black")

    # 8) Finish touches
    plt.title(title, fontsize=14)
    plt.xticks(rotation=45, ha="right", fontsize=10)
    plt.yticks(rotation=0, fontsize=10)
    plt.tight_layout()
    plt.savefig(output_png, dpi=300)
    plt.savefig(output_svg, format="svg", dpi=300)
    plt.show()

    print(f"Saved heatmap to {output_png} and {output_svg}")


# Color by ANI, annotate with both ANI+SNP:
save_dual_annot_heatmap(
    snp_df=snp_df_ST38,
    ani_df=ani_df_ST38,
    color_by="ani",
    title="ST38: ANI‐color & SNP‐annot",
    rotation=90,
    lower_legend=99.5,   # for the ANI colorbar
    upper_legend=100,
    output_png="../imgs/ani_and_snp_heatmap_colored_by_ani_ST38.png",
    output_svg="../imgs/ani_and_snp_heatmap_colored_by_ani_ST38.svg"
)

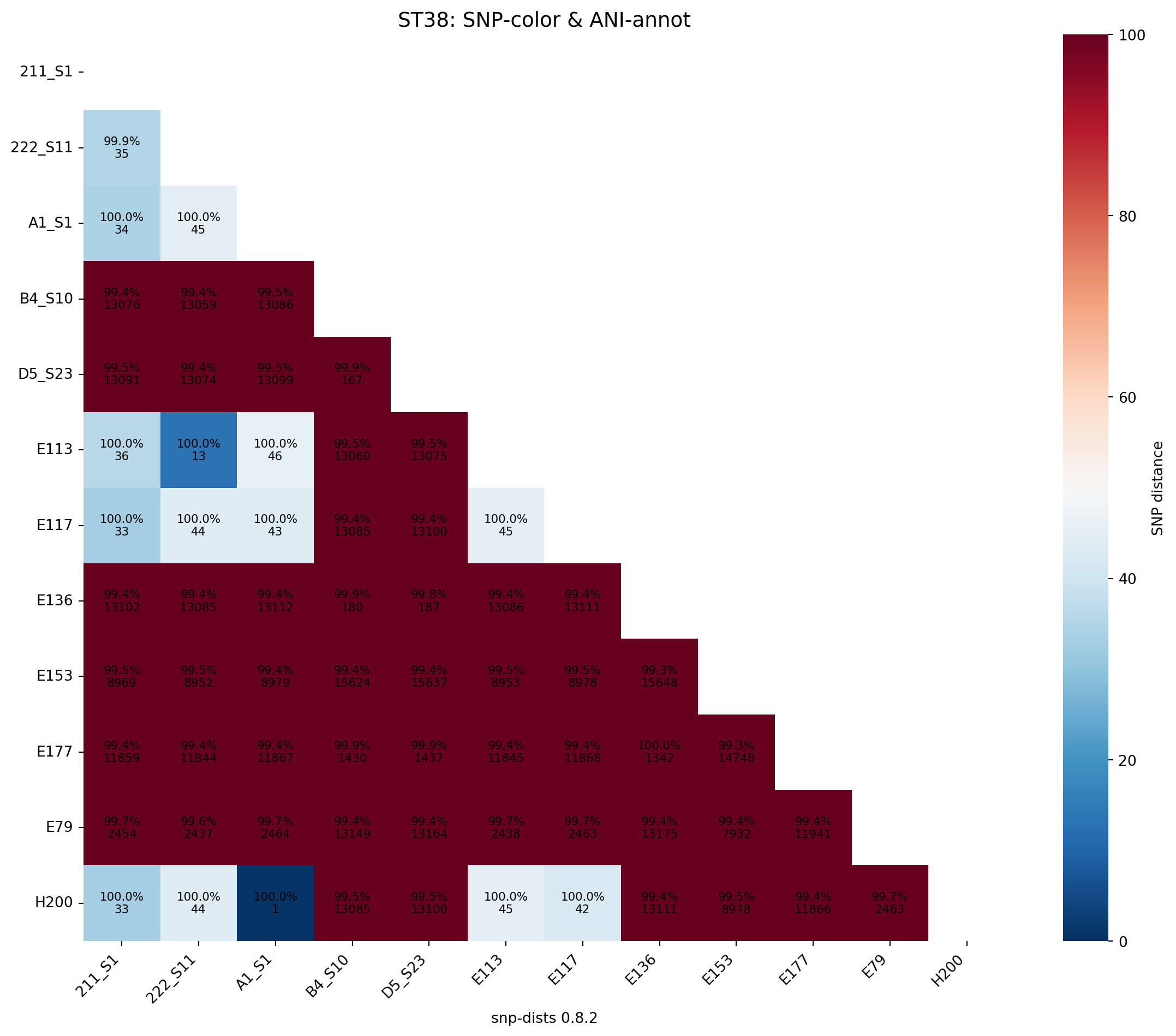

# Or, color by SNP distance, annotate with both:
save_dual_annot_heatmap(
    snp_df=snp_df_ST38,
    ani_df=ani_df_ST38,
    color_by="snp",
    title="ST38: SNP‐color & ANI‐annot",
    rotation=90,
    lower_legend=0,      # for the SNP colorbar
    upper_legend=100,
    output_png="../imgs/ani_and_snp_heatmap_colored_by_snp_ST38.png",
    output_svg="../imgs/ani_and_snp_heatmap_colored_by_snp_ST38.svg"
)

Saved heatmap to ../imgs/ani_and_snp_heatmap_colored_by_ani_ST38.png and ../imgs/ani_and_snp_heatmap_colored_by_ani_ST38.svg

Saved heatmap to ../imgs/ani_and_snp_heatmap_colored_by_snp_ST38.png and ../imgs/ani_and_snp_heatmap_colored_by_snp_ST38.svg

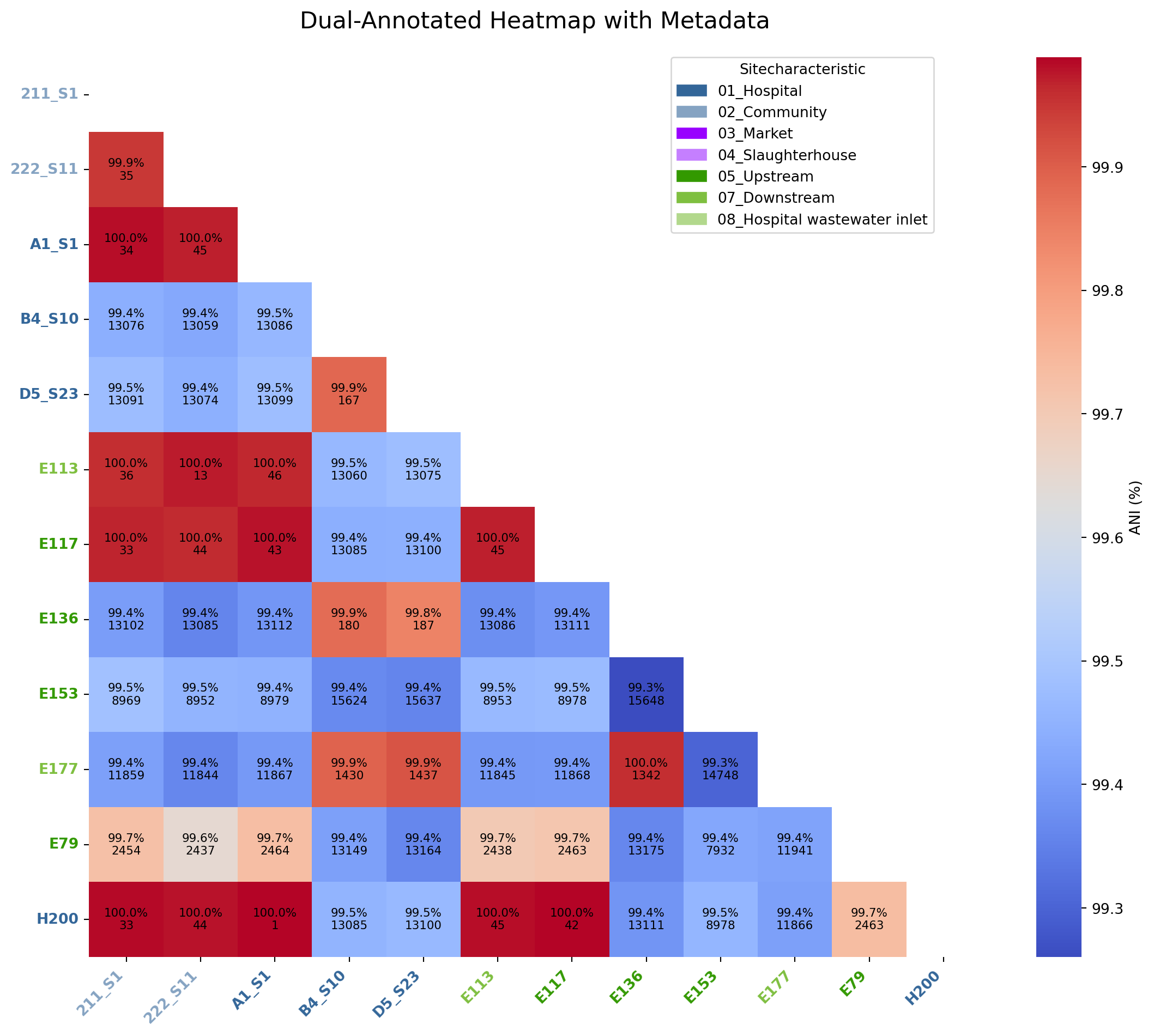

4.2 - Combined ANI and SNP values annotated with metdata

def save_dual_annot_heatmap_with_metadata(
    snp_df,
    ani_df,
    metadata_df,
    metadata_col="SiteCharacteristic",
    sample_id_col="sample",
    color_map=None,  # <-- NEW optional argument
    color_by="ani",
    title="Dual‐Annotated Heatmap with Metadata",
    output_png="dual_heatmap_colored.png",
    output_svg="dual_heatmap_colored.svg"
):
    """
    Generates and saves a dual-annotated heatmap with colored axis labels.
    Accepts an optional dictionary to map characteristics to specific colors.
    """
    # 1) Quick sanity checks
    assert snp_df.shape == ani_df.shape, "Shapes of SNP and ANI dataframes must match"
    assert all(snp_df.index == ani_df.index) and all(snp_df.columns == ani_df.columns)
    assert sample_id_col in metadata_df.columns, f"'{sample_id_col}' not found in metadata"
    assert metadata_col in metadata_df.columns, f"'{metadata_col}' not found in metadata"

    # 2) Prepare metadata and create a color map
    meta_indexed = metadata_df.set_index(sample_id_col)
    heatmap_samples = snp_df.index

    if color_map:
        # Use the user-provided color map
        site_color_map = color_map
        # Check if all characteristics in the data have a color mapping
        all_sites_in_data = meta_indexed.loc[heatmap_samples, metadata_col].unique()
        missing_keys = [site for site in all_sites_in_data if site not in site_color_map]
        if missing_keys:
            raise ValueError(f"The provided color_map is missing colors for: {', '.join(missing_keys)}")
    else:
        # No map provided, generate one automatically
        unique_sites = meta_indexed.loc[heatmap_samples, metadata_col].unique()
        palette = sns.color_palette("hls", len(unique_sites))
        site_color_map = dict(zip(unique_sites, palette))

    # 3) Pick the matrix that drives the color, mask, and set bounds
    cmap_df = ani_df if color_by == "ani" else snp_df
    cbar_label = "ANI (%)" if color_by == "ani" else "SNP distance"
    cmap_color = "coolwarm" if color_by == "ani" else "RdBu_r"
    mask = np.triu(np.ones_like(cmap_df, dtype=bool))
    vmin = np.nanmin(cmap_df.values[~mask])
    vmax = np.nanmax(cmap_df.values[~mask])

    # 4) Set up the plot
    fig, ax = plt.subplots(figsize=(13, 10))
    sns.heatmap(
        cmap_df, mask=mask, cmap=cmap_color, vmin=vmin, vmax=vmax,
        annot=False, cbar_kws={"label": cbar_label}, ax=ax
    )

    # 5) Overlay both ANI and SNP text annotations
    for i in range(len(cmap_df.index)):
        for j in range(len(cmap_df.columns)):
            if mask[i, j]: continue
            txt = f"{ani_df.iloc[i, j]:.1f}%\n{int(snp_df.iloc[i, j])}"
            ax.text(j + 0.5, i + 0.5, txt, ha="center", va="center", fontsize=8, color="black")

    # 6) Apply colors to tick labels
    for tick_label in ax.get_yticklabels():
        tick_label.set_color(site_color_map[meta_indexed.loc[tick_label.get_text(), metadata_col]])
        tick_label.set_weight('bold')
    for tick_label in ax.get_xticklabels():
        tick_label.set_color(site_color_map[meta_indexed.loc[tick_label.get_text(), metadata_col]])
        tick_label.set_weight('bold')

    # 7) Add a custom legend for the site colors
    legend_patches = [mpatches.Patch(color=color, label=site) for site, color in site_color_map.items()]
    ax.legend(handles=legend_patches, title=metadata_col.replace('_', ' ').title(),
              bbox_to_anchor=(0.8, 1), loc='upper center', borderaxespad=0.)

    # 8) Final touches
    ax.set_title(title, fontsize=16, pad=20)
    plt.xticks(rotation=45, ha="right")
    plt.yticks(rotation=0)
    fig.tight_layout(rect=[0, 0, 0.9, 1])

    # 9) Save and show
    plt.savefig(output_png, dpi=300)
    plt.savefig(output_svg, format="svg")
    plt.show()

    print(f"Heatmap saved to {output_png} and {output_svg}")

Now plot the heatmap

# Your metadata
metadata_df = pd.read_csv("../data/site_characteristics.csv", sep=",", index_col=0)


metadata_df = pd.read_csv("/Users/richard.goodman/Library/CloudStorage/OneDrive-LSTM/Github/trycycle-ESBL-E-jakarta/data/site_characteristics.csv", sep=",", index_col=0)



metadata_df['sample_name'] = metadata_df.index

metadata_df = pd.DataFrame(metadata_df, columns=["sample_name", "SiteCharacteristic"])

my_color_map = {
    "01_Hospital": "#336699",
  "02_Community": "#85a3c2",
  "03_Market": "#9900ff",
  "04_Slaughterhouse": "#c57fff",
  "05_Upstream": "#339900",
  "07_Downstream": "#7fbf40",
  "08_Hospital wastewater inlet": "#b2d88c"
}



# --- Now, call the updated function ---
save_dual_annot_heatmap_with_metadata(
    snp_df=snp_df_ST38,
    ani_df=ani_df_ST38,
    metadata_df=metadata_df,
    metadata_col="SiteCharacteristic", # The column to color by
    sample_id_col="sample_name",
    color_map=my_color_map,           # The column with sample IDs
    output_png="../imgs/dual_heatmap_colored_ST38.png",
    output_svg="../imgs/dual_heatmap_colored_ST38.svg"
)

Heatmap saved to ../imgs/dual_heatmap_colored_ST38.png and ../imgs/dual_heatmap_colored_ST38.svg
