Geospatial plotting of ANI connections between strains from Jakarta, Indonesia

Author

Richard Goodman

Published

July 4, 2025

1. Setting up R

library(sf)
library(ggplot2)
library(osmdata)
library(readxl)
library(dplyr)
library(rnaturalearth)
library(rnaturalearthdata)
library(viridis)
library(tidyr)   # For pivoting
library(ggforce) # For pie charts
library(ggrepel)
library(stringr)
library(scatterpie)

2. Loading data

# 1. Read data
metadata = read.csv("../data/metadata_all_edit2.csv")
locations = read_excel("../data/GPS Data of Environment sampling site_TC.xlsx")

3. Wrangle data

# Remove number before locations
locations =  locations %>%
  mutate(site = sub("^[0-9]+\\.", "", Location))

locations[locations$Location == "Pasar Sawah Barat", "Longitude"] = 106.93

# create a new column with mutations
metadata =  metadata %>%
  dplyr::mutate(site = sub("^[0-9]+\\.", "", site))

# Merge metadata and coordinates
metadata_mlst = metadata %>%
  dplyr::left_join(locations, by = c("site" = "site"))

# Choose
metadata_mlst_2 = metadata_mlst %>%
  dplyr::filter(sector == "Human" | sector == "Environment" | sector == "Animal")

write.csv(metadata_mlst_2, "metadata_combined_with_mlst_human_animal_env.csv")

4. Making the Jakarta Map

# boundaries
gj_bbox = c(xmin = 106.5, ymin = -6.7, xmax = 107.2, ymax = -5.9)

# Query for city/regency boundaries (admin level 5)
greater_jakarta_admin = opq(bbox = gj_bbox) %>%
  add_osm_feature(key = "admin_level", value = "5") %>%
  osmdata_sf()

greater_jakarta_map = greater_jakarta_admin$osm_multipolygons

#plot(st_geometry(greater_jakarta_map))

unique(greater_jakarta_map$name)
 [1] "Jakarta Selatan"     "Jakarta Timur"       "Kepulauan Seribu"
 [4] "Jakarta Pusat"       "Jakarta Barat"       "Jakarta Utara"
 [7] "Tangerang Selatan"   "Tangerang"           "Kabupaten Tangerang"
[10] "Bekasi"              "Depok"               "Bogor"
[13] "Kab Bogor"           "Kab Bekasi"          "Cianjur"
[16] "Karawang"
unique(greater_jakarta_map$admin_level)
[1] "5"
unique(greater_jakarta_map$type)
[1] "boundary"
gj_filtered = greater_jakarta_map %>%
  filter(grepl("Jakarta|Bogor|Bekasi|Depok|Tangerang", name))

labels_df = gj_filtered %>%
  st_point_on_surface() %>%  # safer than centroid for oddly shaped areas
  select(name) %>%
  mutate(lon = st_coordinates(.)[,1],
         lat = st_coordinates(.)[,2])
Warning: st_point_on_surface assumes attributes are constant over geometries
Warning in st_point_on_surface.sfc(st_geometry(x)): st_point_on_surface may not
give correct results for longitude/latitude data

5. Plotting ANI Connections

5.1 ANI connections with ST38 strains

This example is for ST38 but all the STs analysed in the study were run the same way.

You can use ctrl + F to replace ST38 with any other ST of interest and the code will run the same.

# 1. Read data
ani_mat_ST38 = read.csv("../data/ST38_ANI_matrix_indonesia_trycycle.csv")
coords = read.csv("../data/metadata_combined_with_mlst_human_animal_env.csv")

colnames = colnames(ani_mat_ST38)
rownames(ani_mat_ST38) = colnames
ani_mat_ST38 = ani_mat_ST38 %>% mutate(sample1 = rownames(ani_mat_ST38), .before = 1)

# 2. Prepare ANI long-format table
ani_long_ST38 = ani_mat_ST38 %>%
  pivot_longer(cols = -sample1, names_to = "sample2", values_to = "ANI") %>%
  filter(!is.na(ANI))

# 3. Merge coordinates for both ends of each pair
ani_pairs_ST38 = ani_long_ST38 %>%
  # Join coords for sample1
  dplyr::left_join(coords %>%
                     select(sample1 = sample_name, lon1 = Longitude, lat1 = Latitude),
                   by = "sample1") %>%
  # Join coords for sample2
  dplyr::left_join(coords %>%
                     select(sample2 = sample_name, lon2 = Longitude, lat2 = Latitude),
                   by = "sample2")

ani_pairs_ST38 = ani_pairs_ST38 %>% filter(ANI != 100.00)
ani_pairs_ST38 = ani_pairs_ST38 %>% filter(ANI >= 99.5)

ani_pairs_ST38_singles = ani_pairs_ST38 %>%
  rowwise() %>%
  mutate(
    pair_min = min(c_across(c(sample1, sample2))),
    pair_max = max(c_across(c(sample1, sample2)))
  ) %>%
  ungroup() %>%
  distinct(pair_min, pair_max, .keep_all = TRUE)

ani_pairs_ST38_singles = ani_pairs_ST38_singles %>% filter(!(lon1 == lon2 & lat1 == lat2))

# 1) extract same‑site pairs, keep only the one with max ANI at each location

ani_pairs_ST38_best = ani_pairs_ST38_singles %>%
  # 1) define an "unordered" site‐pair via min/max coords
  mutate(
    lon_min = pmin(lon1, lon2),
    lon_max = pmax(lon1, lon2),
    lat_min = pmin(lat1, lat2),
    lat_max = pmax(lat1, lat2)
  ) %>%
  # 2) group by that unordered pair
  group_by(lon_min, lat_min, lon_max, lat_max) %>%
  # 3) pick the single row with the highest ANI in each group
  slice_max(order_by = ANI, n = 1, with_ties = FALSE) %>%
  ungroup() %>%
  # 4) drop the helper columns
  select(-lon_min, -lon_max, -lat_min, -lat_max)

ani_pairs_ST38
# A tibble: 54 × 7
   sample1  sample2    ANI  lon1  lat1  lon2  lat2
   <chr>    <chr>    <dbl> <dbl> <dbl> <dbl> <dbl>
 1 X211_S1  X222_S11  99.9    NA    NA   NA  NA
 2 X211_S1  A1_S1    100.     NA    NA  107. -6.20
 3 X211_S1  E113     100.     NA    NA  107. -6.11
 4 X211_S1  E117     100.     NA    NA  107. -6.37
 5 X211_S1  E79       99.7    NA    NA  107. -6.28
 6 X211_S1  H200     100.     NA    NA  107. -6.20
 7 X222_S11 X211_S1   99.9    NA    NA   NA  NA
 8 X222_S11 A1_S1    100.     NA    NA  107. -6.20
 9 X222_S11 E113     100.     NA    NA  107. -6.11
10 X222_S11 E117     100.     NA    NA  107. -6.37
# ℹ 44 more rows
ani_pairs_ST38_singles
# A tibble: 14 × 9
   sample1 sample2   ANI  lon1  lat1  lon2  lat2 pair_min pair_max
   <chr>   <chr>   <dbl> <dbl> <dbl> <dbl> <dbl> <chr>    <chr>
 1 A1_S1   E113    100.   107. -6.20  107. -6.11 A1_S1    E113
 2 A1_S1   E117    100.   107. -6.20  107. -6.37 A1_S1    E117
 3 A1_S1   E79      99.7  107. -6.20  107. -6.28 A1_S1    E79
 4 B4_S10  E136     99.9  107. -6.12  107. -6.28 B4_S10   E136
 5 B4_S10  E177     99.9  107. -6.12  107. -6.12 B4_S10   E177
 6 D5_S23  E136     99.8  107. -6.12  107. -6.28 D5_S23   E136
 7 D5_S23  E177     99.9  107. -6.12  107. -6.12 D5_S23   E177
 8 E113    E117    100.   107. -6.11  107. -6.37 E113     E117
 9 E113    E79      99.7  107. -6.11  107. -6.28 E113     E79
10 E113    H200    100.   107. -6.11  107. -6.20 E113     H200
11 E117    E79      99.7  107. -6.37  107. -6.28 E117     E79
12 E117    H200    100.   107. -6.37  107. -6.20 E117     H200
13 E136    E177    100.   107. -6.28  107. -6.12 E136     E177
14 E79     H200     99.7  107. -6.28  107. -6.20 E79      H200
ST155 = 155
ST410 = 410
ST131 = 131
ST38 = 38
ST10 = 10
ST58 = 58

coords_ST38 = coords %>% filter(ST == ST38)

# Jakarta with ANI connections

sector_key_ST38 = unique(coords_ST38[, c("sector", "sector_colour")])

# Jakarta with ANI connections

# 4. Build the map
p_ST38 = ggplot() +
  # Basemap
  # gj_filtered has already been created above
  geom_sf(data = gj_filtered, fill = "white", color = "grey80") +
  geom_text(data = labels_df,
            aes(x = lon, y = lat, label = name),
            size = 3, fontface = "bold", color = "gray50") +
  # Connections: curved segments colored by ANI
  geom_curve(data = ani_pairs_ST38_best,
             aes(x = lon1, y = lat1, xend = lon2, yend = lat2, color = ANI),
             curvature = 0.2, size = 0.7, alpha = 0.8) +
  scale_color_gradientn(
    colors = c("#3B4DC0", "#6281EA", "#8DB0FE", "#B7CFF9", "#DCDDDD", "#F4C5AD", "#F4997B", "#DD5F4C", "#B40426"),
    limits = c(99.50, 100.00),
    name = "ANI (%)"
  ) +
  # Sample points
  geom_point(data = coords_ST38,
             aes(x = Longitude, y = Latitude,
                 fill = sector_colour),
             shape = 21,       # circle with fill + border
             color = "black",  # border colour
             size = 3) +
  scale_fill_identity(
    name   = "Sector",                     # legend title
    breaks = sector_key_ST38$sector_colour,     # the hex‐codes to show
    labels = sector_key_ST38$sector,            # the text you want
    guide  = "legend"
  ) +
  # Sample labels
  geom_text_repel(data = coords_ST38,
                  aes(x = Longitude, y = Latitude, label = sample_name),
                  size = 3, bg.color = "white", max.overlaps = 20) +
  coord_sf(
    xlim = c(106.7, 107.1),
    ylim = c(-6.4, -6.05),
    expand = FALSE
  ) +
  theme_minimal() +
  theme(
    panel.background = element_rect(fill = "#cceeff", color = NA))   +
  theme(legend.position = "right",
        panel.border = element_rect(colour = "black", fill=NA, linewidth=1)) +
  labs(title = "ST38",
       subtitle = " ",
       x = "Longitude", y = "Latitude")
Warning: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0.
ℹ Please use `linewidth` instead.

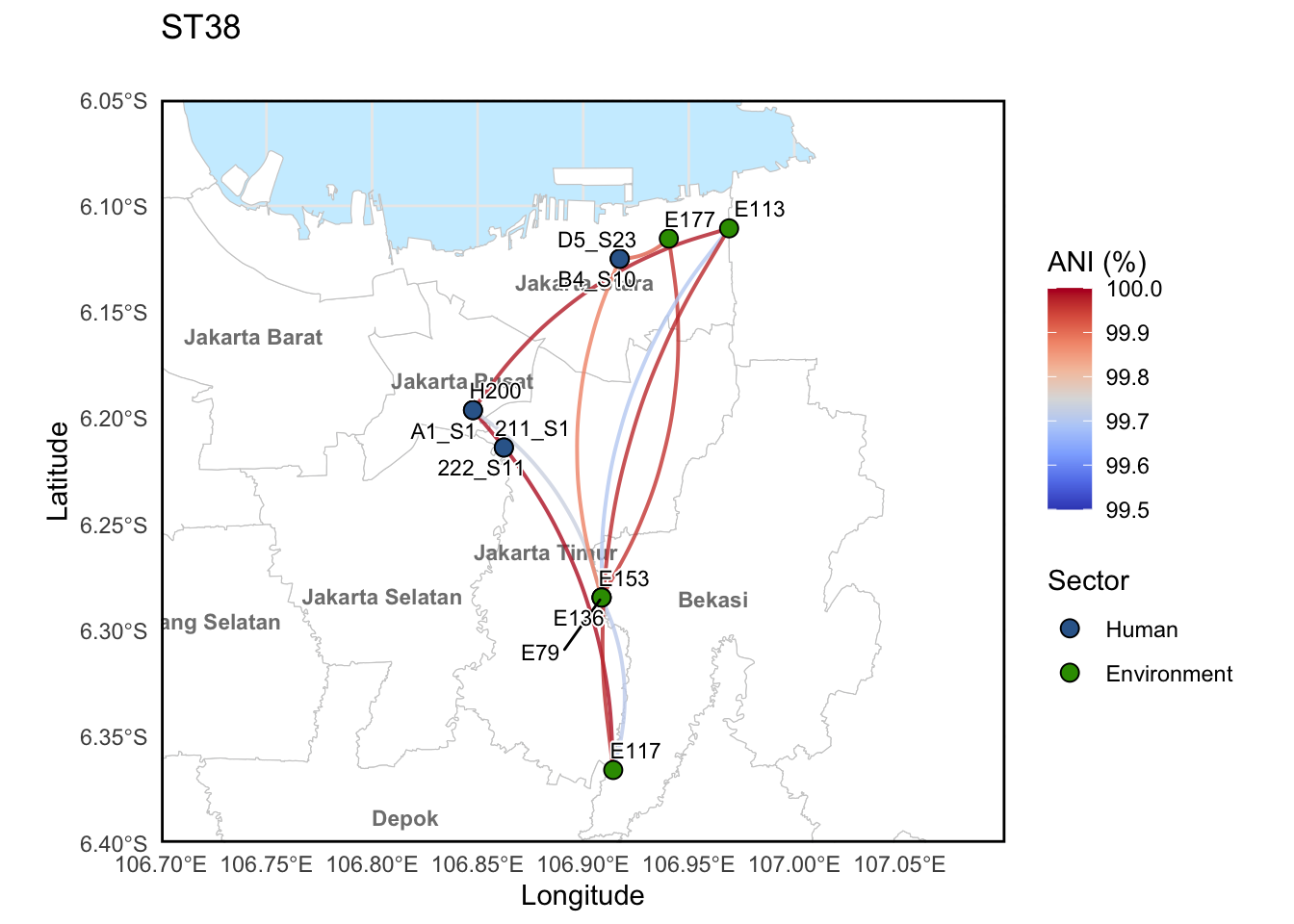

# 5. Print the map
print(p_ST38)

ggsave("../imgs/Geospatial_ANI_connections_between_ST38_threshold=99.5_singles.svg", p_ST38, height = 8, width = 8)
ggsave("../imgs/Geospatial_ANI_connections_between_ST38_threshold=99.5_singles.png", p_ST38, height = 8, width = 8)
